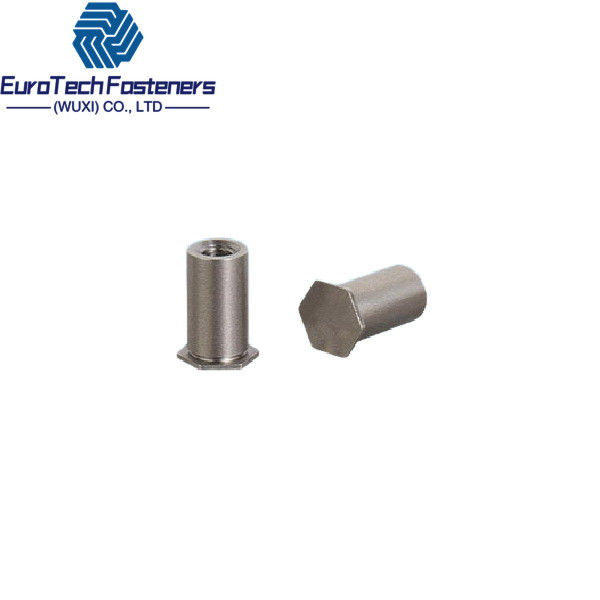

Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6
  • Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6
  • Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6
Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6

Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6

Place of Origin Jiangsu, China
Brand Name Ouji Fasteners
Certification ISO, GB
Model Number Din
Product Details
Name:
M2 M3 M4 M6 M8 Stainless Steel Hexagon Rivet Nut Blind Self Clinching Standoff M3
Keyword:
Self Clinching Standoff
Model Number:
Self Clinching Blind Standoff
Standard:
ISO,DIN ,ANSI ,JIS ,GB, BSW , ASE, IFI ,,UNI
Thread Types:
American/Left Hand/Metric/Right Hand/Special Pitch
Material:
Brass, Copper, Carbon Steel, Stainless Steel, Steel Alloy
Material Grade:
4.8/ 6.8/ 8.8/ 10.9/ 12.9/304 Stainless Steel/316 Stainless Steel
Thread Size:
M3/M4....4-40,6-32
Color:
Black/White/Yellow/Silver/Green/Brown/Clear/Blue
Category:
Screw, Bolt, Rivet, Nut, Etc
Measurement System:
Metric
Diameter:
#4, #6, #8, #10, #12, #14
Surface Treatment:
Bright(Uncoated)
Body Type:
Round, Knurled/ribbed, Hexagon, Blind
Head Type:
Flat Head, Small/reduced Head, Csk Head
Alias:
Rivet Nut/Rivnut/Pull Rivet Nuts
Body Type:
Hexagon, Round, Square
Handle Type::
T Type, B Type, Cup Type, L Type
Thread Size:
M3-M15
Highlight:

pem threaded standoff

,

pem standoff

,

pem blind standoff

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case packing
Delivery Time
3-5 working days
Payment Terms
L/C, T/T
Supply Ability
3 million pieces per week
Product Description

Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6



 Specification



PCB standoffs ( Hexagon head thru-hole PCB standoffs SO )
Material Carbon steel, stainless steel, brass, aluminum, titanium.
Hex size 5mm,6mm,8mm,10mm,12mm,15mm,20mm,25mm
Length Length:0mm-600mm
Quality ISO9001:2008 standard
Hardened layer thickness 0.8-3.0mm
Precision +/-0.01mm
Surface coating Zn- Plated,Ni-plated,Passivated,Tin-plated
Thickness of plating 1-2μm,1.5μm on average
Service Special requirement on machining, such as threading, coaxial holes drilled and tapped, radial holes drilled and tapped, reduced shaft diameter etc; We could supply OEM service to our customers
Application Metal plates, circuit boards, computers ect..
Samples delivery 3-5days
Price $0.01-0.4



Pem Threaded Standoff Self Clinch Standoffs Blind SO-M3M4M5M6 0



Thread size Carbon steel Stainless steel Aluminum Thickness Hole size C H Edge
M2*0.4 SO SOS SOA 1 4.22 4.2 4.8 6
M2.5*0.45 SO SOS SOA 1 4.22 4.2 4.8 6
M3*0.5 SO SOS SOA 1 4.22 4.2 4.8 6
3.SM3*0.5 SO SOS SOA 1 5.41 5.39 6.4 6.8
M4*0.7 SO SOS SOA 1.3 6 5.98 7 7.5
3.5M4*0.7 SO SOS SOA 1.3 7.14 7.12 7.9 8
M5*0.8 SO SOS SOA 1.3 7.14 7.12 7.9 8
M6*1.0 SO SOS SOA 1.3 8.72 8.7 10 10
